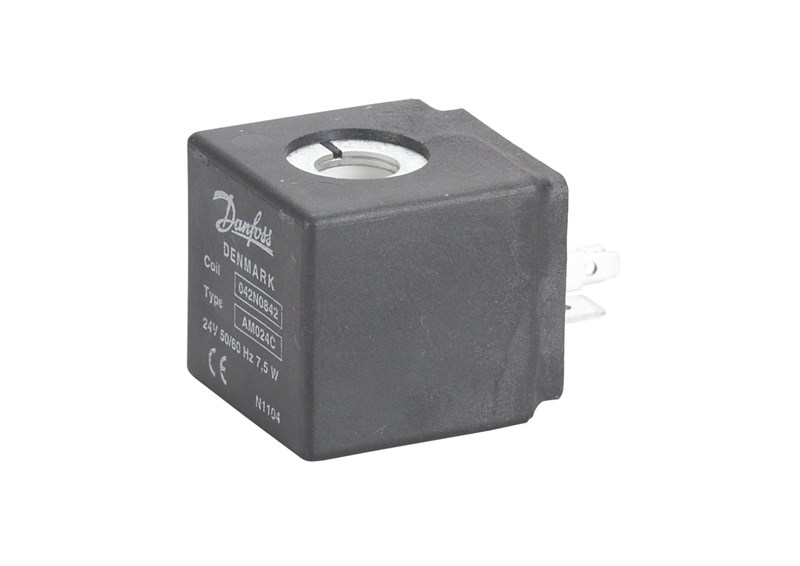

Compact coil for valve range A, 7.5W ac / 9.5W dc</FONT>

Compact Windings of class H insulated wire moulded in the coil body Ambient temperature: Up to +50°C IP 00 version with terminals DIN 43650 form A IP 20 version with protective cap IP 65 version with mounted cable plug Characteristic Value Type AM230C Weight 0.102 Kg Actuator size 9 mm Ambient temperature [°C] -40 - 50 °C Ambient temperature range [°F] -40 - 120 °F Approval LLC CDC TYSK Coil connection DIN Spade Colour BLACK EAN 5702423049844 Enclosure rating IP00 Frequency [Hz] 50/60 HZ Packing format Multi pack Power consumption [W] 7,5 W Quantity per packing format 24 PC Supply voltage [V] a.c. 230 V Type designation Coil for Solenoid valve
