Characteristic
Value
Type

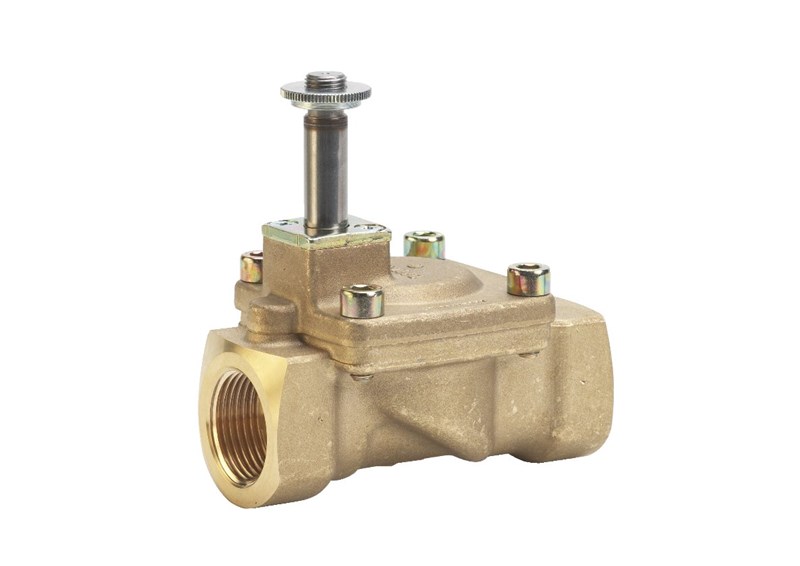

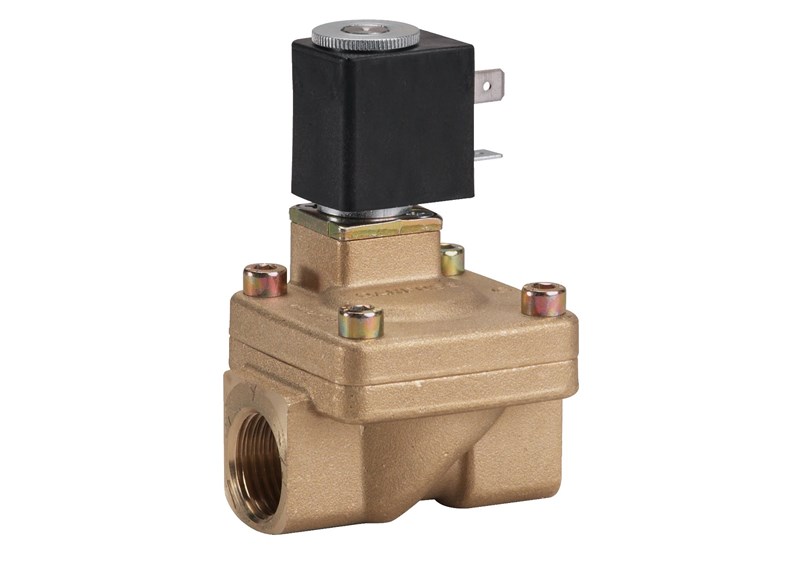

EV220A
Weight
0.762 Kg
Actuator size
9 mm
Actuator size [in]
0.35 in
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Body material
Brass
Connection
G 3/4
Connection Internal/External
Internal
Connection standard
ISO 228-1
Cv value [gal/min]
8,200 gpm US
Differential pressure [bar]
0,3 - 16 bar
Differential pressure [psi]
4,3 - 228,6 psi
EAN
5702423106639
Function
N C
Kv value [m³/h]
7,000 m3/h
Max. Working Pressure [bar]
50,0 bar
Max. Working Pressure [psig]
715 psig
Medium temperature range [°C]
-10 - 90 °C
Medium temperature range [°F]
15 - 195 °F
Number of ways
2/2
Operation
Servo-operated (diaphragm)
Orifice size [in]
3/4 in
Orifice size [mm]
18,00 mm
Packing format
Multi pack
Quantity per packing format
24 PC
Seal material
NBR
Type designation
Solenoid valve
