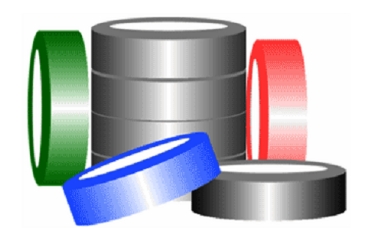

LEAD FREE PVC PLASTIC ELECTRICAL INSULATION TAPE



SCOPE:

This specification covers Lead Free PVC plastic electrical insulation tape to be used in electrical service at temperature 0 ~80o C.

The tape shall be used for insulation of jointed splices of cables and wires. The tape must have good insulation properties, heat, weather, flame resistance, and lead free materials for environment, suitable for tropical country.

STANDARD:

The lead Free PVC plastic electrical insulation tape shall be manufactured and tested in accordance with TIS 386-2531:

Dimension

1) Thickness (mm) 0.125,0.18 + 0.025

2) Width (mm) 19 + 1.0

3) Length (m) 10 + 1.0 / - 0
