060-110891, 060-110866, 060-1128

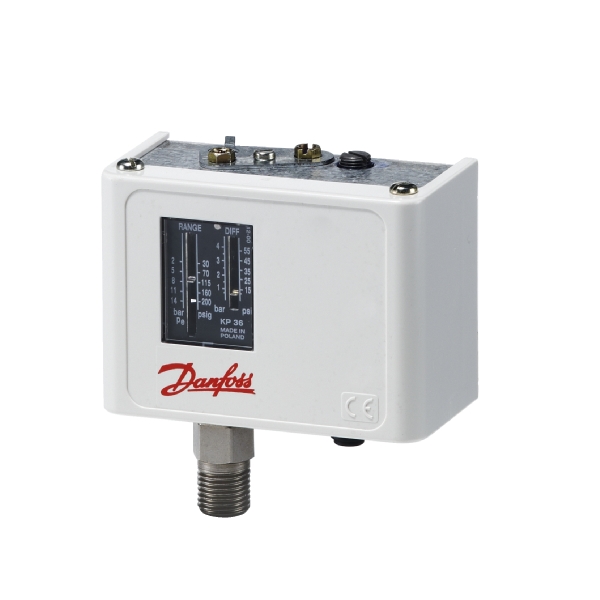

Danfoss KP pressure switches are used for regulating,
monitoring and alarm systems in industrial applications.
The KP series are suitable for gaseous media and air.
They are fitted with a single-pole switch changeover (SPDT),
and can control single-phase ac motors of up to 2 kW directly.
c UL us UL353, CS C22.2, c UL us UL873,
CS C22.2, CCC, CE, FM, RINA, RMRS
Contact function SPDT Contact rating AC1=16 A, 400 V Contact rating AC15=10 A, 400 V Contact rating AC3=16 A, 400 V Contact rating DC13=12 W, 220 V Contact rating LR 112 A, 400 V Differential [bar] 0,70 - 4,00 bar Differential [psi] 10,00 - 58,00 psi EAN 5702423267736 Electrical conn. comments Rubber cable gland Electrical connection size 6-14 mm Enclosure rating IP30 Max. test pressure [bar] Pe 22,0 bar Max. Working Pressure [bar] 17,0 bar Max. Working Pressure [psig] 245 psig Max. working pressure [bar] Pe 17,0 bar Max. working pressure [psig] Pe 245,0 psig Nema rating (~) 1 Packing format Multi pack Pressure connection standard ISO 228-1 Pressure connection type G - 1/4 Male Pressure range category Medium pressure Pressure sensing element Bellows Product description Pressure Control Quantity per packing format 36 PC Refrigerants HCFC/Non flam HFC Regulation range [bar] Pe 2,00 - 14,00 bar Regulation range [psig] Pe 29,00 - 203,00 psig Reset function AUTO UL approval file name E31024 UL approval file name MH27572
