รายละเอียดสินค้า : RT107 Temperature Control

RT107 Temperature Control
  • ราคา 0 บาท
  • รหัสสินค้า : 017-514066
  • ชื่อสินค้า : RT107 Temperature Control
  • อัพเดทล่าสุด : 26 กุมภาพันธ์ 2562
  • Tags : Temperature

ข้อมูลติดต่อเจ้าของร้านค้าที่ขายสินค้าชิ้นนี้

  • เบอร์ติดต่อ : 0879744449
    Email : airvalvethailand@gmail.com

  • ชื่อร้านค้า : แอร์-วาล์ว แอนด์ ริฟริเทค
  • รายละเอียดร้านค้า : ตัวแทนจำหน่าย อุปกรณ์ อะไหล่ ระบบทำความเย็นยี่ห้อ Danfoss, Parker, Hansen, อุปกรณ์นิวเมติก ไฮดรอลิก ฟลูอิดคอนโทรล, อุปกรณ์แอร์และเครื่องทำความเย็น, วาล์วลม, วาล์วน้ำ, ปั๊ม, เครื่องวัดแรงดัน, อุปกรณ์ไฟฟ้าในโรงงานอุตสาหกรรม โรงน้ำแข็ง ห้องเย็น เรือเดินทะเล
  • Url ของร้านค้า : http://www.valvedee.com

รายละเอียดสินค้า

RT controls are used in general industrial and marine sectors.
The RT temperature switch series consist of a variety of ordinary room temperature switches and remote sensor temperature switches including neutral zone temperature switches. RT temperature switches are generally recommended for applications where safety or economical consequences are critical factors.
RT controls have been in service for more than 60 years.

Temperature ranges: - 60°C to 300°C Replaceable contact system Also available with gold plated contact systems Fail-safe Adjustable differential Enclosure IP66 Available with min. and max. reset function (IP54) Available with dead zone Available with all relevant marine approvals Characteristic Value Type RT107 Weight 0.974 Kg Ambient temperature [°C] -50 - 70 °C Ambient temperature [°F] -58 - 158 °F Ambient temperature [°C] -50 - 70 °C Ambient temperature range [°F] -58 - 158 °F Approval CE, DNV, GL, GOST, KRS, LR, NKK, RINA, RMRS Capillary tube length [in] 196 7/8 in Capillary tube length [mm] 5.000 mm Charge type Partial Contact function SPDT Contact rating AC1=10 A, 400 V Contact rating AC15=3 A, 400 V Contact rating AC3=4 A, 400 V Contact rating DC13=12 W, 220 V Contact rating LR=28 A, 400 V Diff. @ Max. range setting[°C] 1,8 - 8,0 °C Diff. @ Min. range setting[°C] 6,0 - 25,0 °C Differential type Adjustable EAN 5702423120321 Electrical connection size 2xPg 13.5 Electrical specification standard EN 60947-4/-5 Enclosure rating IP66 Glow lamp No Max. sensor temperature [°C] 215 °C Max. sensor temperature [°F] 419,0 °F Packing format Multi pack Product description Temperature Control Quantity per packing format 15 PC Reset function AUTO Sensor size (Ø x L) [in] 3/8 x 4 1/4 in Sensor size (Ø x L) [mm] 9.5 X 110 mm Sensor type Remote Sensor Temperature Range [°C] 70 - 150 °C Temperature range [°F] 158 - 302 °F

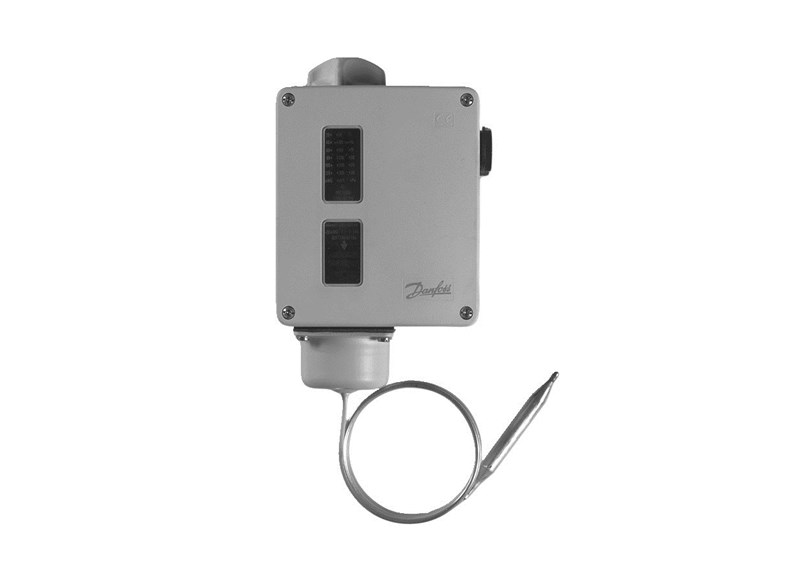

รูปสินค้า

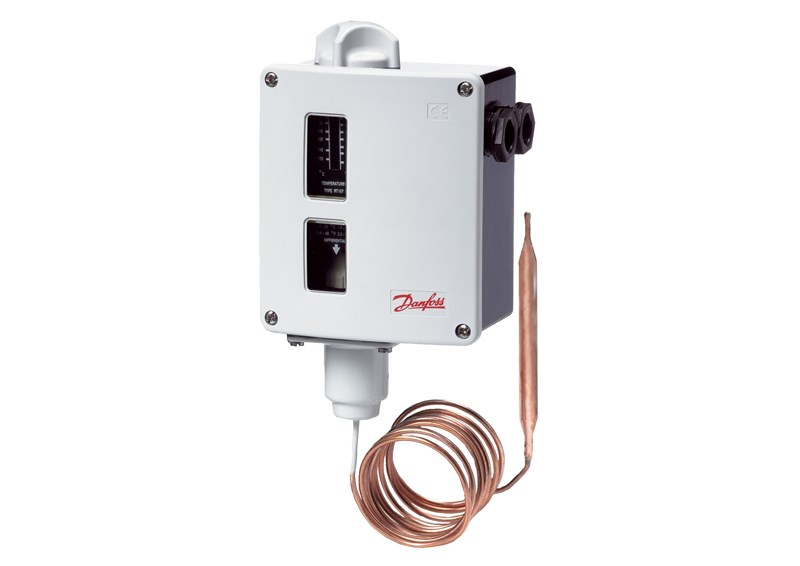

รูปสินค้า
