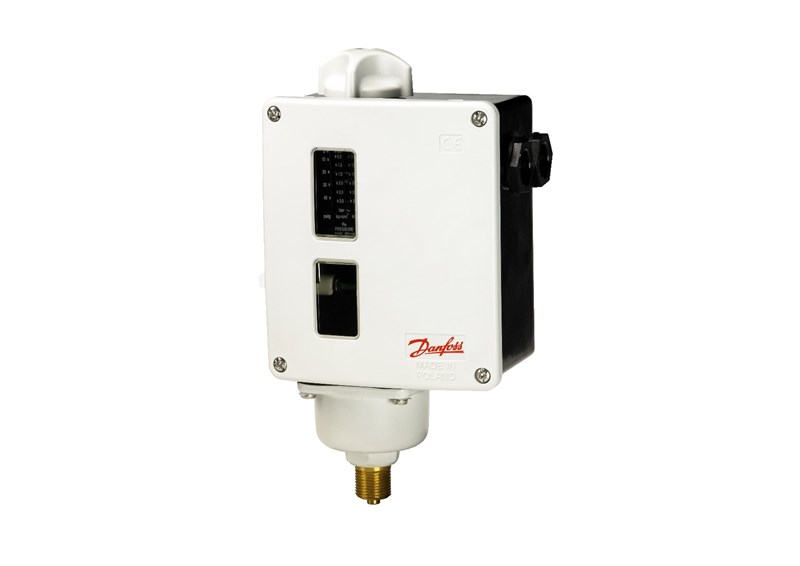

TYPE CODE RT110 WEIGHT 0.896 Kg AMBIENT TEMP. -50 - 70 °C AMBIENT TEMP. -58 - 158 °F APPROVAL BV, CCC, CE, DNV, EAC, GL, KR, LR, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TÜV, TYSK CONTACT FUNCTION SPDT CONTACT RATING AC1=10 A, 400 V CONTACT RATING AC15=3 A, 400 V CONTACT RATING AC3=4 A, 400 V CONTACT RATING DC13=12 W, 220 V CONTACT RATING LR=28 A, 400 V DIFF. 0,08 - 0,25 bar DIFF. 1,20 - 3,60 psi EAN NO. 5702423121328 ELECTR. CONN. MALE/FEMALE Female ELECTR. CONN. DIN 40430 2xPg 13.5 ELECTR. CONN. Screwed cable entry ELECTR. SPEC. STANDARD EN 60947-4/-5 EN 60947 ELECTRICAL PROPERTIES Insulation: 400V EN 60947 ELECTRICAL PROPERTIES Pollution degree: 3 EN 60947 ELECTRICAL PROPERTIES Rated impulse voltage: 4 kV EN 60947 ELECTRICAL PROPERTIES Short circuit prot, fuse: 10A EN 60947 WIRING PROPERTIES Flex, ferrules: 0.2-1.5 mm2 EN 60947 WIRING PROPERTIES Flex, no ferrules: 0.2-2.5 mm2 EN 60947 WIRING PROPERTIES Solid/stranded: 0.2-2.5 mm2 ENCLOSURE RATING IP66 MAX. TEST PRESSURE 8,0 bar MAX. TEST PRESSURE 116,0 psig MAX. WORKING PRESSURE 7,0 bar MAX. WORKING PRESSURE 100 psig PACK FORMAT Multi pack PRESSURE CONN. STD. ISO 228-1 PRESSURE CONN. TYPE G - 3/8 Male PRESSURE SENSING ELEM. Bellows PRODUCT ACCESSORIES Switches accessories PROD. DESCRIPTION Pressure switch PROD. GROUP Switches and thermostats PROD. NAME Pressure switch PACK QTY. 15 PC REGUL. RANGE 0,20 - 3,00 bar REGUL. RANGE 2,90 - 43,50 psig RESET AUTO SERVICEABLE Contact systems
