In the KPS series, special attention has been given to meeting important demands for a high level of enclosure, a robust, compact construction and resistance to shock and vibration.
The KPS range covers most outdoor as well as indoor application requirements, and are suitable for use in alarm and regulation systems in factories, diesel plant, compressors, powerstation and on board ships.
Pressure ranges: 0 to 60 bar
Gold plated contact systems
Adjustable or fixed differential
Robust and compact construction
Resistance to shock and vibrations

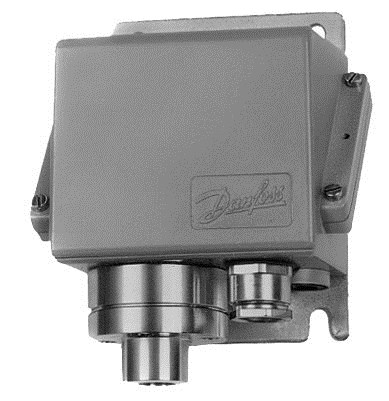

Diaphragm version for applications with:
pulsations/pressure peaks
sea water as media
Enclosure IP67. Sturdy and sea water resistant.
Available with all relevant land and marine approvals
Characteristic
Value
Type
KPS45
Weight
1.13 Kg
Ambient temperature [°C]
-25 - 70 °C
Ambient temperature [°F]
-13 - 158 °F
Ambient temperature [°C]
-25 - 70 °C
Ambient temperature range [°F]
-13 - 158 °F
Approval
ABS, BV, CCC, CCS, CE, DNV, GL, KRS, LR, NKK, RINA, RMRS, UL Recognized
Burst pressure [bar]
240,0 bar
Contact function
SPDT gold
Contact rating
AC1=10 A, 440 V
Contact rating
AC15=4 A, 440 V
Contact rating
AC3=6 A, 440 V
Contact rating
DC13=12 W, 220 V
Contact rating
for gold 1-30 mA, 5-30 V
Contact rating
LR max. 50 A
Differential [bar]
2,20 - 11,00 bar
Differential [psi]
32,00 - 156,00 psi
EAN
5702423146949
Electrical conn. comments
Metal cable gland
Electrical connection size
Pg 13.5
Enclosure rating
IP67
Identical product
060-410666
Max. test pressure [bar] Pe
180,0 bar
Max. Working Pressure [bar]
120,0 bar
Max. Working Pressure [psig]
1.740 psig
Max. working pressure [bar] Pe
120,0 bar
Max. working pressure [psig] Pe
1.740,0 psig
Packing format
Multi pack
Pressure connection standard
ISO 228-1
Pressure connection type
G - 1/4 Female
Pressure range category
High pressure
Pressure sensing element
Diaphragm
Product description
Pressure Control
Quantity per packing format
8 PC
Regulation range [bar] Pe
4,00 - 40,00 bar
Regulation range [MPa] Pe
0,40 - 4,00 MPa
Regulation range [psig] Pe
58,00 - 580,00 psig
Reset function
AUTO
UL approval file name
E73170
