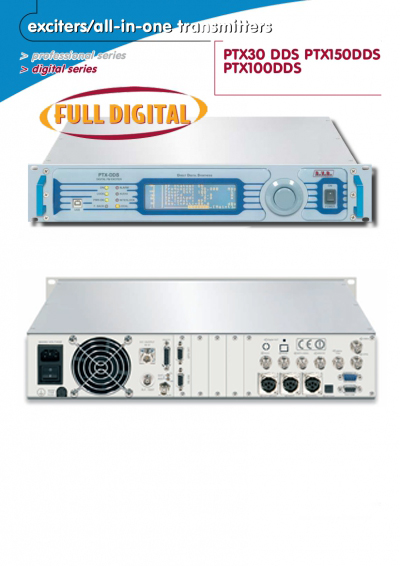

PTX30DDS

PTX100DDS

PTX150DDS

Parameter

Value

GENERALS

Frequency range



FCC - CCIR - OIRT - JPN – CHN

Rated output power



30 W

100 W

1500 W

Modulation type



Direct carrier frequency

Operational Mode



Mono, Stereo, Multiplex

Environmental working conditions



-10 °C  to + 50 °C / 95% relative Humidity non condensing

Frequency programmability



From software with 1, 10, 100, 1000 kHz steps

Frequency stability

WT from -10°C to 50°C

±1 ppm

Modulation capability



150 kHz

Pre-emphasis mode



0  μS, 50 μS  (CCIR), 75 μS  (FCC)

POWER REQUIREMENTS

AC Power Input

AC Supply Voltage

115 / 230  ±15% VAC

Active Power Consumption

160 W

250 W

310 W

Overall Efficiency

31 %

33 %

40 %

Connector

VDE IEC Standard

MECHANICAL DIMENSIONS

Phisical Dimensions

L x H x W

483 mm x 88 mm x 400 mm

Weight



about 10 kg

Cooling



Forced, with internal fan

Acoustic Noise



  < 56 dBA

AUDIO INPUTS

Left & Right



10 kOhm or 600Ohm (XLR F) Level:-12,5 to +12,5 dBu

MPX unbalanced



10 kOhm (BNC) Level: -12,5 to +12,5 dBu

SCA/RDS



10 kOhm (2x BNC) Level: -30 to +13 dBu

AES/EBU



110 Ohm (XLR F)

TOSLINK



TOSLINK F05 - EIAJ

OUTPUTS

RF Output



50 Ohm (N type)

RF Monitor



50 Ohm (BNC) approx. -30 dBc

50 Ohm (BNC) approx. -40 dBc

Pilot output



Level: -12.5 to +5 dBu (0.1 dB step variable by software);
or -6.5 to +11  dBu (internally adjustable +6dBu by jumper );
or -0.5 to 17 dBu (internal jumper to increase the ouput level of +12dBu)

MPX monitor



>600 Ohm (BNC) a Level: -12.5 to +5 dBu (0.1 dB step variable by software);
or -6.5 to +11 dBu (internally adjustable +6dBu by jumper );
or -0.5 to 17 dBu (internal jumper to increase the ouput level of +12dBu)

FUSES

On Mains



1 External fuse F 6,3 T - 5x20 mm
