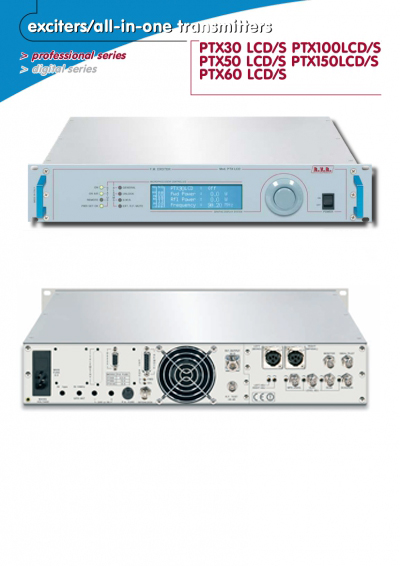

PTX30LCD

PTX50LCD

PTX60LCD

PTX100LCD

PTX150LCD

Parameter

Value

GENERALS

Frequency range



FCC - CCIR - OIRT - JPN – CHN

Rated output power



30 W

50 W

60 W

100 W

1500 W

Modulation type



Direct carrier frequency

Operational Mode



Mono, Stereo, Multiplex

Environmental working conditions



-10 °C  to + 50 °C / 95% relative Humidity non condensing

Frequency programmability



From software, with 10 kHz steps

Frequency stability

WT from -10°C to 50°C

±1 ppm

Modulation capability



150 kHz  Stereo, 200 kHz Mono/MPX

Pre-emphasis mode



0  μS, 50 μS  (CCIR), 75 μS  (FCC)

POWER REQUIREMENTS

AC Power Input

AC Supply Voltage

115 - 125 - 230 – 250 VAC

Active Power Consumption

95 W

150 W

250 W

330 W

Overall Efficiency

31 %

33 %

40 %

45 %

Connector

VDE IEC Standard

MECHANICAL DIMENSIONS

Phisical Dimensions

L x H x W

483 mm x 88 mm x 400 mm

Weight



about 10 kg

about 13 kg

about 15 kg

Cooling



Forced, with internal fan

Acoustic Noise



  < 75 dBA

AUDIO INPUTS

Left/Mono & Right/MPX



10 kOhm or 600Ohm (XLR F) Level:-13 to +14 dBu

MPX unbalanced



10 kOhm or 50 Ohm (BNC) Level: -13 to +14 dBu

SCA/RDS



10 kOhm (3x BNC) Level: -3 to +15 dBu

AES/EBU



110 Ohm  or 75 Ohm  (XLR F)

TOSLINK



TOSLINK F05 - EIAJ

S/P DIF



75 Ohm (Cinch-RCA coaxial)

OUTPUTS

RF Output



50 Ohm (N type)

RF Monitor



50 Ohm (BNC) approx. -30 dBc

Pilot output



>4,7 kOhm (BNC) approx.1Vpp

MPX monitor



>600 Ohm (BNC) a Level: 0 dBu

FUSES

On Mains



1 External fuse F 6,3 T - 5x20 mm

On PA Supply



1 External fuse F 6,3 A - 5x20 mm

1 External fuse F 10 A - 5x20 mm
