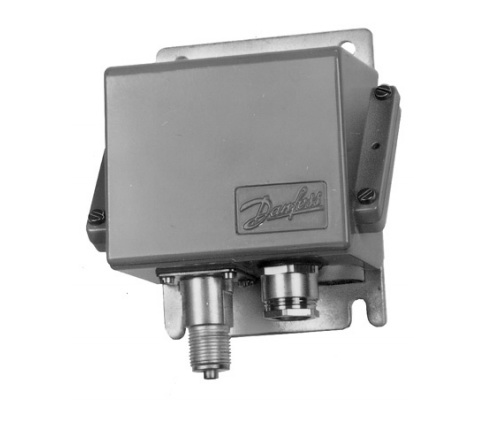

In the KPS switches series, special attention has been given to meeting important demands for a high level of enclosure, a robust, compact construction and resistance to shock and vibration.
The KPS switches range covers most outdoor as well as indoor application requirements, and are suitable for use in alarm and regulation systems in factories, diesel plant, compressors, power station and on board ships.



TYPE CODE KPS37 WEIGHT 0.966 Kg AMBIENT TEMP. -40 - 70 °C AMBIENT TEMP. -40 - 158 °F APPROVAL ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK, UL CONTACT FUNCTION SPDT gold CONTACT RATING AC1=10 A, 440 V CONTACT RATING AC15=4 A, 440 V CONTACT RATING AC3=6 A, 440 V CONTACT RATING DC13=12 W, 220 V CONTACT RATING for gold 1…30 mA, 5...30 V CONTACT RATING LR max. 50 A DIFF. 0,85 - 2,50 bar DIFF. 12,00 - 36,00 psi EAN NO. 5702423146789 ELECTR. CONN. COMMENTS Metal cable gland ELECTR. CONN. MALE/FEMALE Female ELECTR. CONN. SIZE Pg 13.5 ENCLOSURE RATING IP67 IDENTICAL PROD. 060-410966 MAX. TEST PRESSURE 27,0 bar MAX. TEST PRESSURE 392 psig MAX. WORKING PRESSURE 22,0 bar MAX. WORKING PRESSURE 319 psig PACK FORMAT Multi pack PRESSURE CONN. STD. ISO 228-1 PRESSURE CONN. TYPE G - 3/8 Male PRESSURE RANGE CAT. Medium pressure PRESSURE SENSING ELEM. Bellows PROD. DESCRIPTION Pressure Control PROD. GROUP Switches and thermostats PROD. NAME Pressure switch PACK QTY. 8 PC REGUL. RANGE 6,00 - 18,00 bar REGUL. RANGE 0,60 - 1,80 MPa REGUL. RANGE 87,00 - 261,00 psig RESET AUTO UL APPROVAL FILE NAME E73170
