TYPE CODE
KPS45
WEIGHT
1.09 Kg
AMB. TEMP. NOTE
80 °C/176 °F for max 120 min
AMBIENT TEMP.
-25 - 70 °C
AMBIENT TEMP.
-13 - 158 °F
APPROVAL
ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK, UL
BURST PRESSURE
240,0 bar
CONTACT FUNCTION
SPDT gold
CONTACT RATING
AC1=10 A, 440 V
CONTACT RATING
AC15=4 A, 440 V
CONTACT RATING
AC3=6 A, 440 V
CONTACT RATING
DC13=12 W, 220 V
CONTACT RATING
for gold 1…30 mA, 5...30 V
CONTACT RATING
LR max. 50 A
DIFF.
2,20 - 11,00 bar
DIFF.
32,00 - 156,00 psi
EAN NO.
5702423146949
ELECTR. CONN. COMMENTS
Metal cable gland
ELECTR. CONN. MALE/FEMALE
Female
ELECTR. CONN.
DIN 40430 Pg 13.5
ELECTR. CONN.
Screwed cable entry
EN 60947 ELECTRICAL PROPERTIES
Insulation: 400V
EN 60947 ELECTRICAL PROPERTIES
Pollution degree: 3
EN 60947 ELECTRICAL PROPERTIES
Rated impulse voltage: 4 kV
EN 60947 ELECTRICAL PROPERTIES
Short circuit prot, fuse: 16A
EN 60947 WIRING PROPERTIES
Flex, ferrules: 0.5-1.5 mm2
EN 60947 WIRING PROPERTIES
Flex, no ferrules: 0.7-2.5 mm2
EN 60947 WIRING PROPERTIES
Solid/stranded: 0.75-2.5 mm2
ENCLOSURE RATING
IP67
IDENTICAL PROD.
060-410666
MAX. TEST PRESSURE
180,0 bar
MAX. TEST PRESSURE
2.611,0 psig
MAX. WORKING PRESSURE
120,0 bar
MAX. WORKING PRESSURE
1.740 psig
PACK FORMAT
Multi pack
PRESSURE CONN. STD.
ISO 228-1
PRESSURE CONN. TYPE
G - 1/4 Female
PRESSURE SENSING ELEM.
Diaphragm
PRODUCT ACCESSORIES
Switches accessories

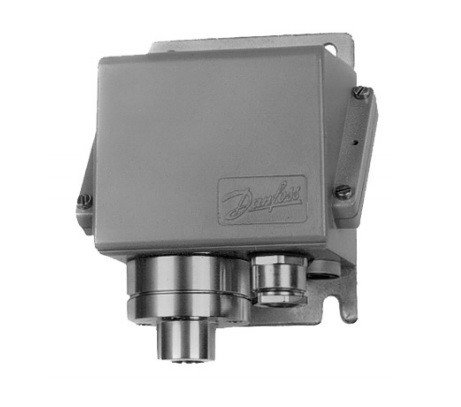

PROD. DESCRIPTION
Pressure switch
PROD. GROUP
Switches and thermostats
PROD. NAME
Pressure switch
PACK QTY.
8 PC
REGUL. RANGE
4,00 - 40,00 bar
REGUL. RANGE
0,40 - 4,00 MPa
REGUL. RANGE
58,00 - 580,00 psig
RESET
AUTO
SERVICEABLE
No
UL APPROVAL FILE NAME
E73170
