Product details
Gross weight
0.34 Kg
Net weight
0.32 Kg
EAN
5702423147335
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]
65 °C
Ambient temperature range [°C] [Min]
-40 °C
Ambient temperature range [°F] [Max]
149 °F
Ambient temperature range [°F] [Min]
-40 °F
Approval
CCC
CE
EAC
LVD
PZH
RINA
RoHS China
c UL us UL873, CS C22.2
Contact function
SPDT
Contact rating
AC15=4 A, 440 V
DC13=12 W, 220 V
AC1=10 A, 440 V
AC3=6 A, 440 V
LR=36A, 240V
LR=48A, 120V
Differential [bar] [Max]
6 bar
Differential [bar] [Min]
1.8 bar
Differential [psi] [Max]
87 psi
Differential [psi] [Min]
26 psi
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V
Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
Max. test pressure [bar] Pe
30 bar
Max. test pressure [psig]
435 psig
Max. Working Pressure [bar]
30 bar
Max. Working Pressure [psig]
435 psig
Packing format
Multi pack
Pressure connection size
1/4
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure range category
High pressure
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product Group
Switches and thermostats
Product name

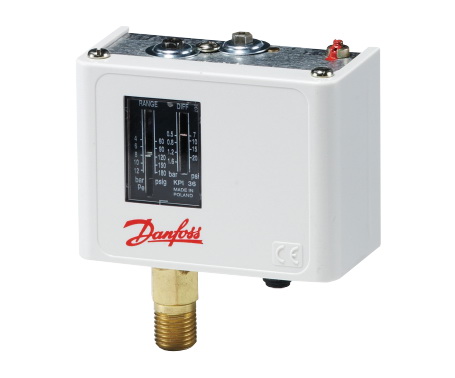

Pressure switch
Product type
KPI38
Quantity per packing format
36 pc
Regulation range [bar] Pe [Max]
28 bar
Regulation range [bar] Pe [Min]
8 bar
Regulation range [psig] Pe [Max]
406 psig
Regulation range [psig] Pe [Min]
116 psig
Reset function
Auto
Serviceable
No
UL approval file name
E31024
