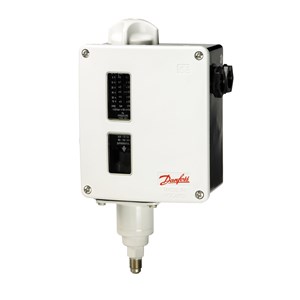

TYPE CODE RT1 WEIGHT 0.728 Kg AMBIENT TEMP. -50 - 70 °C AMBIENT TEMP. -58 - 158 °F APPROVAL CCC, CE, EAC, GL, LVD, NKK, PZH, RINA, RMRS, RoHS, RoHS China, TYSK CONTACT FUNCTION SPDT CONTACT RATING AC1=10 A, 400 V CONTACT RATING AC15=3 A, 400 V CONTACT RATING AC3=4 A, 400 V CONTACT RATING DC13=12 W, 220 V CONTACT RATING LR=28 A, 400 V DIFF. 0,50 - 1,60 bar DIFF. 7,30 - 23,20 psi EAN NO. 5702428517416 ELECTR. CONN. MALE/FEMALE Female ELECTR. CONN. DIN 40430 2xPg 13.5 ELECTR. CONN. Screwed cable entry ELECTR. SPEC. STANDARD EN 60947-4/-5 EN 60947 ELECTRICAL PROPERTIES Insulation: 400V EN 60947 ELECTRICAL PROPERTIES Pollution degree: 3 EN 60947 ELECTRICAL PROPERTIES Rated impulse voltage: 4 kV EN 60947 ELECTRICAL PROPERTIES Short circuit prot, fuse: 10A EN 60947 WIRING PROPERTIES Flex, ferrules: 0.2-1.5 mm2 EN 60947 WIRING PROPERTIES Flex, no ferrules: 0.2-2.5 mm2 EN 60947 WIRING PROPERTIES Solid/stranded: 0.2-2.5 mm2 ENCLOSURE RATING IP66 MAX. TEST PRESSURE 25,0 bar MAX. TEST PRESSURE 363,0 psig MAX. WORKING PRESSURE 22,0 bar MAX. WORKING PRESSURE 320 psig PACK FORMAT Multi pack PRESSURE CONN. STD. DIN 8906 PRESSURE CONN. TYPE Flare - 7/16-20 Male PRESSURE SENSING ELEM. Bellows PRODUCT ACCESSORIES Switches accessories PROD. DESCRIPTION Pressure switch PROD. GROUP Switches and thermostats PROD. NAME Pressure switch PACK QTY. 15 PC REFRIGERANTS R11 REFRIGERANTS R113 REFRIGERANTS R12 REFRIGERANTS R124 REFRIGERANTS R134a REFRIGERANTS R22 REFRIGERANTS R404A REFRIGERANTS R407A REFRIGERANTS R407C REFRIGERANTS R407F REFRIGERANTS R407H REFRIGERANTS R422B REFRIGERANTS R422D REFRIGERANTS R438A REFRIGERANTS R507C REGUL. RANGE -0,80 - 5,00 bar RESET AUTO SERVICEABLE Contact systems
