SW AS,PK LLSS W/ Q/D

REFRIGERANT FLOAT SWITCH

PART NUMBER : 112617
MAXIMUM AMBIENT TEMPERATURE (C) : 65°C
MAXIMUM AMBIENT TEMPERATURE (F) : 150°F
ELECTRICAL CONNECTION : 4- Pole QD
LEAD LENGTH (MM) : N/A

PART NUMBER : 112618
MAXIMUM AMBIENT TEMPERATURE (C) : 65°C
MAXIMUM AMBIENT TEMPERATURE (F) : 150°F
ELECTRICAL CONNECTION : Leaded
LEAD LENGTH (MM) : 610 mm


210220 : Replacement QD Switch
210221 : Replacement Leaded

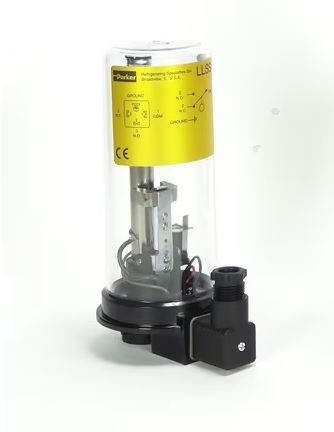

Refrigerant Float Switch
Type: LLSS

Purpose:
The LLSS Float Switch is designed for monitoring and managing refrigerant levels in flooded surge drums,
flooded shell and tube chillers, high and low pressure receivers, intercoolers, transfer vessels and various types of accumulators.
The unique design of the new and improved LLSS Float Switch
allows it to withstand corrosive environments associated with many industrial refrigeration conditions.

Product Features:
•     Suitable for ammonia R-507, R-134a and other common refrigerants
•     304L stainless steel float chamber assembly
•     UV resistant and transparent switch housing
•     Magnetically actuated switch (single pole double throw)
•     Hermetically sealed switch
•     Complete assembly weighs 3.08 kg (6.8 lbs)
•     Switch assemblies are compatible with Refrigerating Specialties liquid level models LL, LLS, and LLA
•     Complies with Pressure Equipment Directive (PED) 2014/68/EU
•     UL listed switch assembly available

■ Part Numbers:
• 112617 Float Switch (QD)
• 112618 Float Switch (Leaded)
• 110257 Float Switch (UL Listed)
• 210220 Replacement QD Switch
• 210221 Replacement Leaded Switch
• 209187 Replacement UL Listed Switch
