Danfoss Stop Check Valves

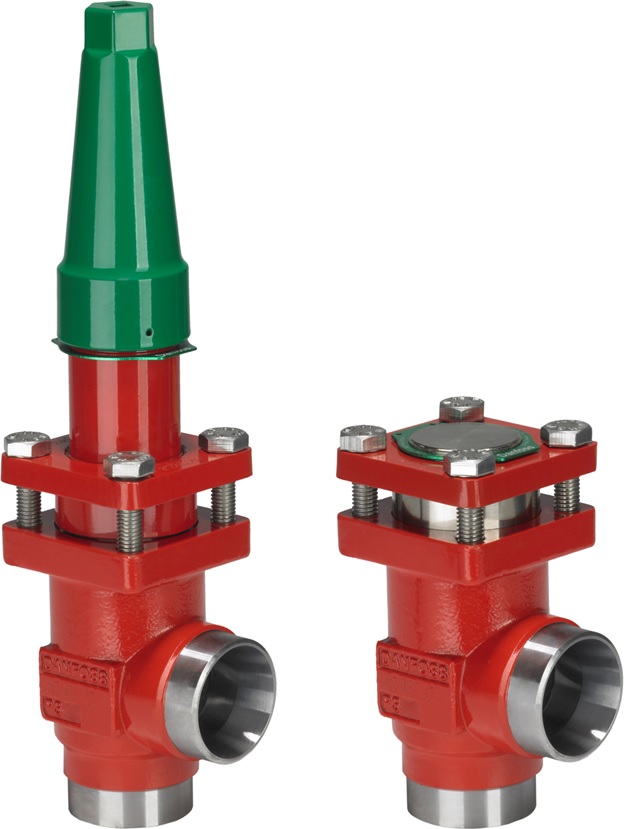

SCA-X are check valves with a built-in shut-off valve function.
SCA-X valves are avilable in angleway versions.

The valves are designed to open at very low differential pressures, allow favourable flow conditions and are easy to disassemble for inspection and service.
The SCA-X is equipped with vented cap and has internal backseating enabling the spindle seal to be replaced whilst the valve still under pressure.
Laser cut V-ports provide excellent opening characteristics (SCA-X/CHV-X 50-125).
The valve cone has a built-in flexibility to ensure a precise and tight closing towards the valve seat.
A well balanced dampening effect between the piston and the cylinder gives an
optimal protection during low loads and against pulsations.

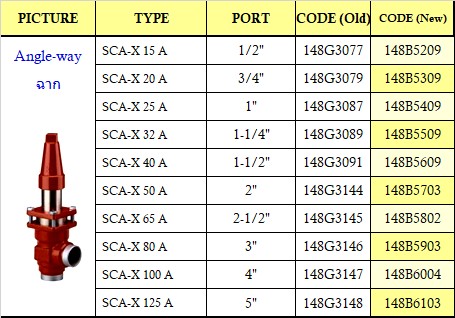

148B5209    SCA-X 15 A Ang Stop/Check Valve PS52
148B5309    SCA-X 20 A Ang Stop/Check Valve PS52
148B5409    SCA-X 25 A Ang Stop/Check Valve PS52
148B5509    SCA-X 32 A Ang Stop/Check Valve PS52
148B5609    SCA-X 40 A Ang Stop/Check Valve PS52
148B5703    SCA-X 50 A Ang Stop/Check Valve PS52
148B5802    SCA-X 65 A Ang Stop/Check Valve PS52
148B5903    SCA-X 80 A Ang Stop/Check Valve PS52
148B6004    SCA-X 100 A Ang Stop/Check Valve PS52
148B6103    SCA-X 125 A Ang Stop/Check Valve PS52
